LS Electric · IS7

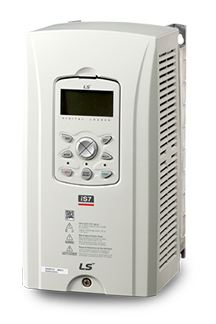

LS Electric SV0008IS7-2NOFD Premium Drive 1.0hp Three Phase 200-240V IP20 (NEMA1 kit optional) with internal EMC filter
LS Electric iS7 Series Motor Power: 1.0 HP ( kW) Output Current: 5.0 A Input Voltage: Three Phase 200-240V Output...
Power
1.0 HP / 0.75 kW
Check datasheet
Voltage
Three Phase 200-240V
Input class
Enclosure
IP20
Model dependent
Authorized distributor. Genuine LS Electric Frequecy Drive.
Free quick tech support. Sizing and parameter help during business hours.
Warranty. Manufacturer warranty applies. Coverage and duration vary by manufacturer and model. See our Warranty Policy and applicable manufacturer terms.
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
1.0
Output power (kW)
0.75
Output current (A)
5.0
Electrical input
Input voltage
Three Phase 200-240V
Output voltage
Three Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP20
Frame size
A
Dimensions (in)
11.18 x 5.9 x 7.87
Weight (lb)
12.13
Control & safety
Safe Torque Off
-
Communications
Modbus RTU, LS Bus
Keypad / display
-
Built-in protection
Built-In DC Choke
Certifications & approvals
Approvals
UL, cUL, CE, KC
