In stock
INVERTEK
INVERTEK
Invertek · ODV 3

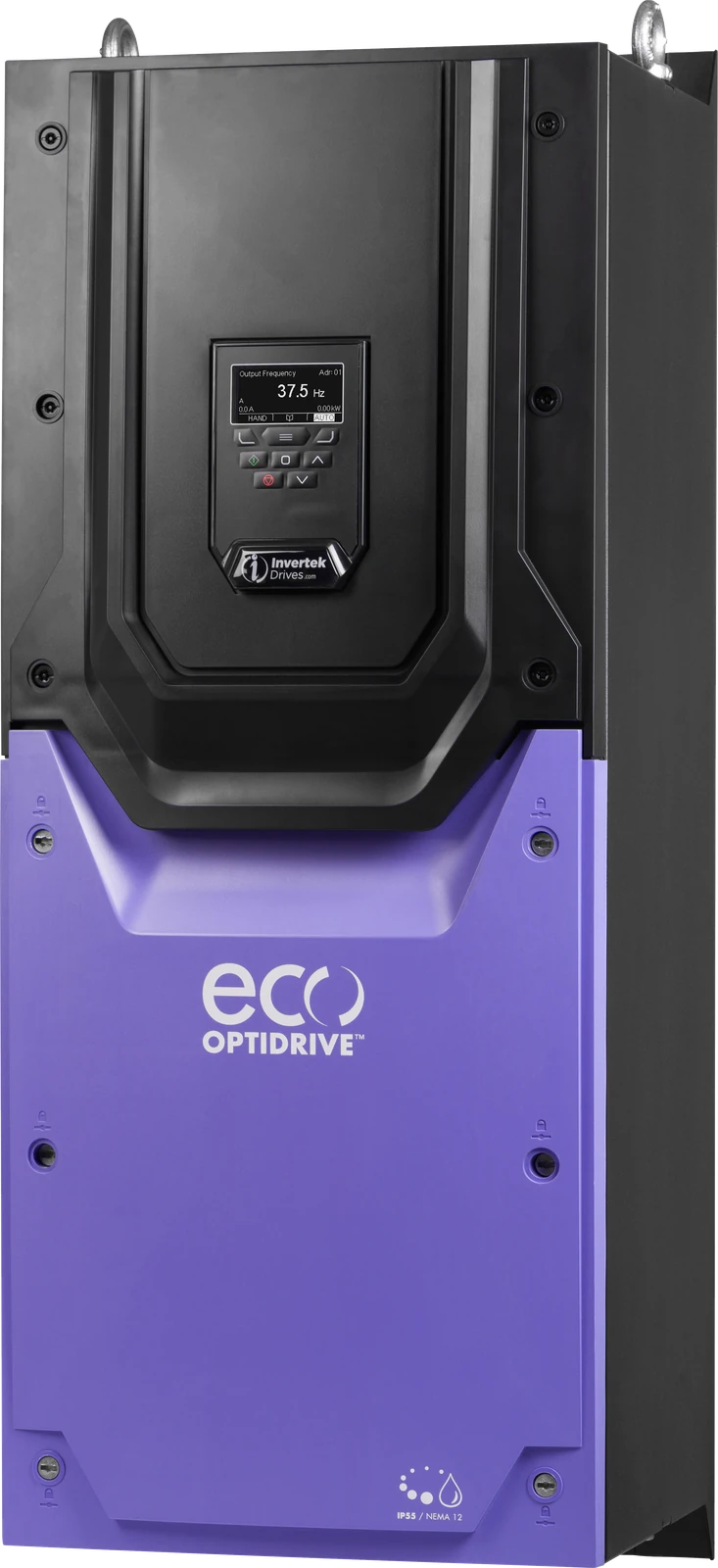

Invertek Optidrive Eco ODV-3-641500-3F1N-MN – 100Hp 380~480V 3Ph IP55/NEMA12
Invertek Optidrive Eco – Model ODV-3-641500-3F1N-MN Power: 100Hp / 75kW Output Current: 150A Input Voltage: 380~480V 3P...
Power
100.0 HP / 75.0 kW
Check datasheet
Voltage
Three Phase 380-480V
Input class
Enclosure
IP55/NEMA12
Model dependent
Authorized distributor. Genuine Invertek product, full manufacturer warranty.
Free quick tech support. Sizing and parameter help during business hours.
Limited warranty. Manufacturing defects, components, and firmware coverage as applicable.
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
100.0
Output power (kW)
75.0
Output current (A)
150.0
Electrical input
Input voltage
Three Phase 380-480V
Output voltage
Three Phase 380-480V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP55/NEMA12
Frame size
6
Dimensions (in)
34.1 x 13.0 x 13.1
Weight (lb)
121.275
Control & safety
Safe Torque Off
✓
Communications
ModbusRTU/BACnetMS/TP
Keypad / display
TFT Keypad
Built-in protection
-
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
