Invertek · ODV 3

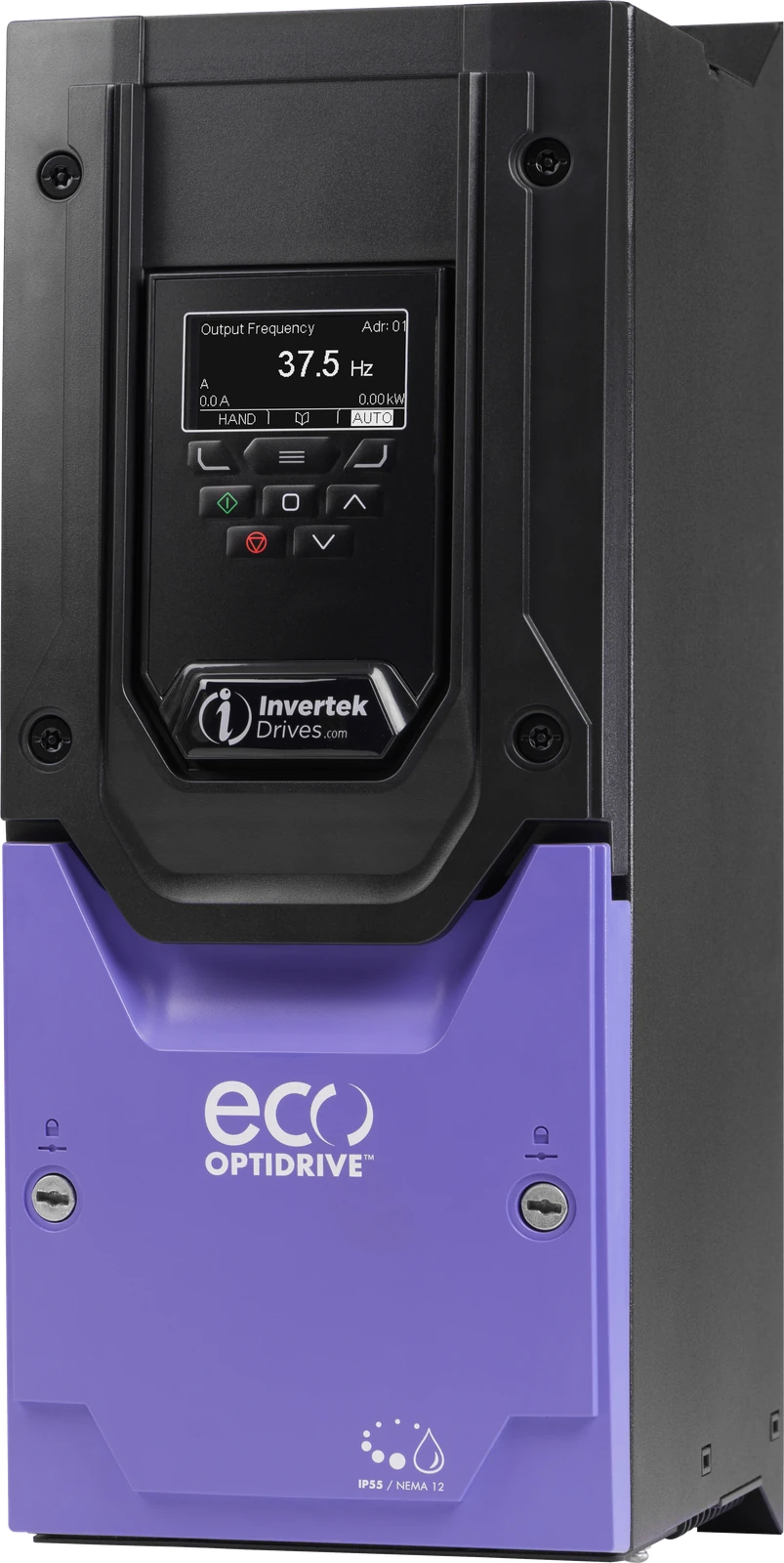

Invertek Optidrive Eco ODV-3-440390-3F1N-MN – 25Hp 380~480V 3Ph IP55/NEMA12
Invertek Optidrive Eco – Model ODV-3-440390-3F1N-MN Power: 25Hp / 18.5kW Output Current: 39A Input Voltage: 380~480V 3P...
Power
25.0 HP / 18.5 kW
Check datasheet
Voltage
Three Phase 380-480V
Input class
Enclosure
IP55/NEMA12
Model dependent
Authorized distributor. Genuine Invertek Frequecy Drive.
Free quick tech support. Sizing and parameter help during business hours.
Warranty. Manufacturer warranty applies. Coverage and duration vary by manufacturer and model. See our Warranty Policy and applicable manufacturer terms.
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
25.0
Output power (kW)
18.5
Output current (A)
39.0
Electrical input
Input voltage
Three Phase 380-480V
Output voltage
Three Phase 380-480V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP55/NEMA12
Frame size
4
Dimensions (in)
17.7 x 6.7 x 9.9
Weight (lb)
25.3575
Control & safety
Safe Torque Off
✓
Communications
ModbusRTU/BACnetMS/TP
Keypad / display
TFT Keypad
Built-in protection
-
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
