In stock
INVERTEK
INVERTEK
Invertek · ODV 3

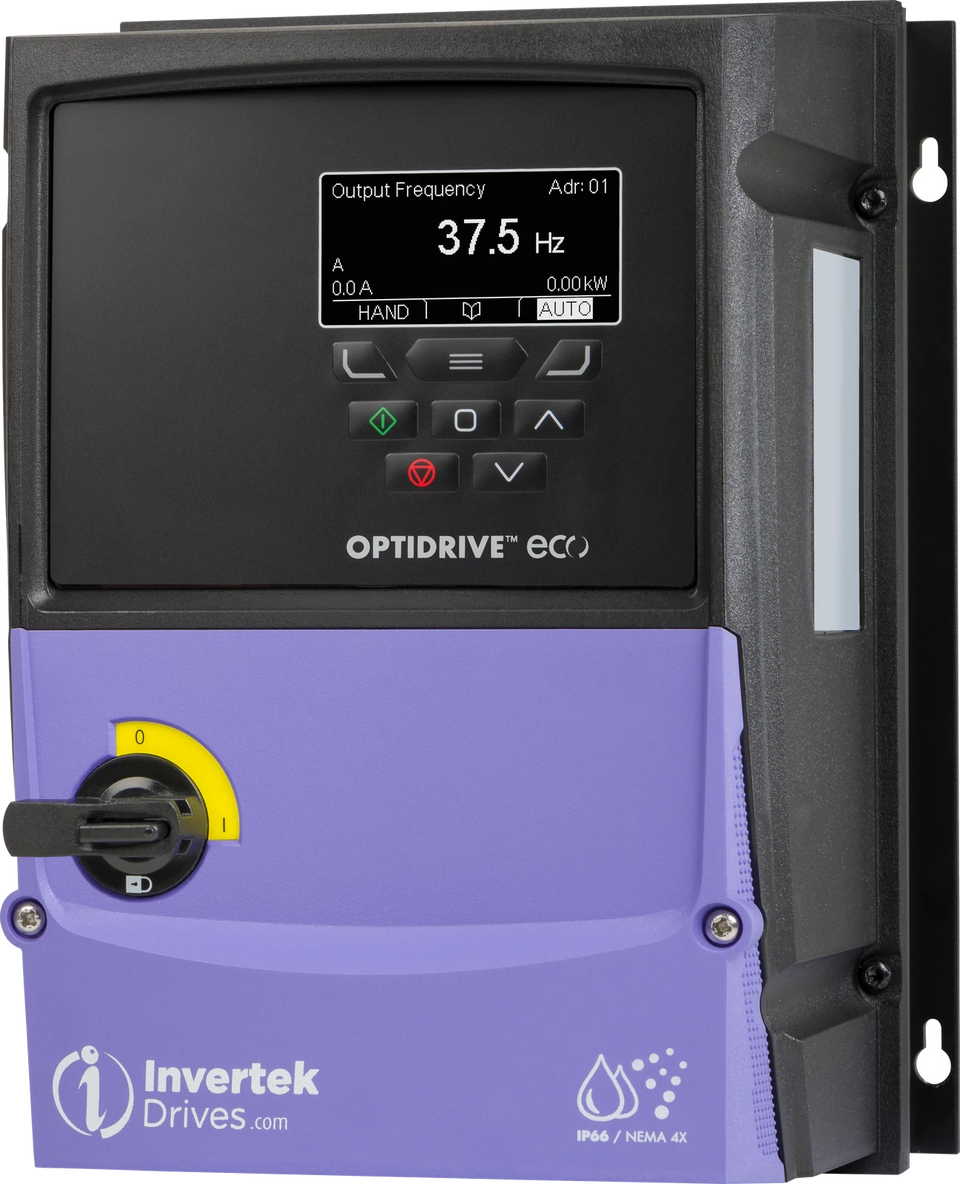

Invertek Optidrive Eco ODV-3-220105-1F1E-MN – 3Hp 200~240V 1Ph IP66/NEMA4X Indoor/Outdoor
Invertek Optidrive Eco – Model ODV-3-220105-1F1E-MN Power: 3Hp / 2.2kW Output Current: 10.5A Input Voltage: 200~240V 1P...
Power
3.0 HP / 2.2 kW
Check datasheet
Voltage
Single Phase 200-240V
Input class
Enclosure
IP66/NEMA4X Indoor/Outdoor
Model dependent
Authorized distributor. Genuine Invertek product, full manufacturer warranty.
Free quick tech support. Sizing and parameter help during business hours.
Limited warranty. Manufacturing defects, components, and firmware coverage as applicable.
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
3.0
Output power (kW)
2.2
Output current (A)
10.5
Electrical input
Input voltage
Single Phase 200-240V
Output voltage
Single Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP66/NEMA4X Indoor/Outdoor
Frame size
2
Dimensions (in)
10.1 x 7.4 x 10.2
Weight (lb)
10.584
Control & safety
Safe Torque Off
✓
Communications
ModbusRTU/BACnetMS/TP
Keypad / display
TFT Keypad
Built-in protection
-
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
