Invertek · ODP 2

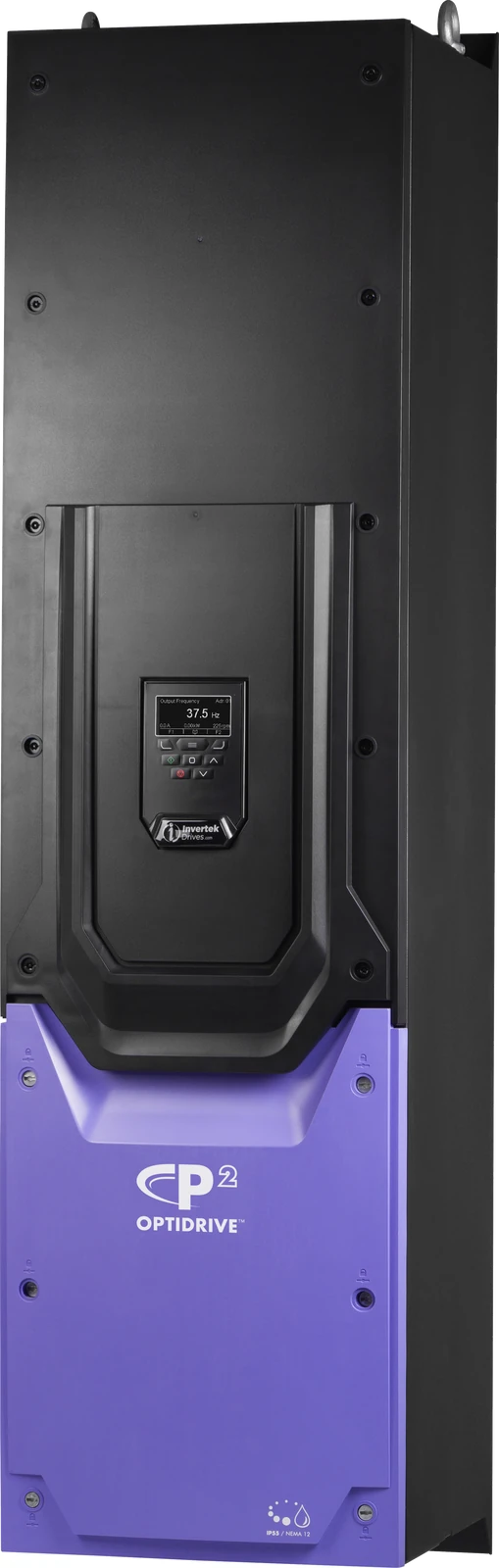

Invertek Optidrive P2 ODP-2-72075-3HF4N-MN – 75Hp 200~240V 3Ph IP55/NEMA12
Invertek Optidrive P2 – Model ODP-2-72075-3HF4N-MN Power: 75Hp / 55kW Output Current: 202A Input Voltage: 200~240V 3Ph ...
Power
75.0 HP / 55.0 kW
Check datasheet
Voltage
Three Phase 200-240V
Input class
Enclosure
IP55/NEMA12
Model dependent
Authorized distributor. Genuine Invertek product, full manufacturer warranty.
Free quick tech support. Sizing and parameter help during business hours.
Limited warranty. Manufacturing defects, components, and firmware coverage as applicable.
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
75.0
Output power (kW)
55.0
Output current (A)
202.0
Electrical input
Input voltage
Three Phase 200-240V
Output voltage
Three Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP55/NEMA12
Frame size
7
Dimensions (in)
50.4 x 13.0 x 14.1
Weight (lb)
196.245
Control & safety
Safe Torque Off
✓
Communications
Modbus RTU/CANopen
Keypad / display
TFT Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
