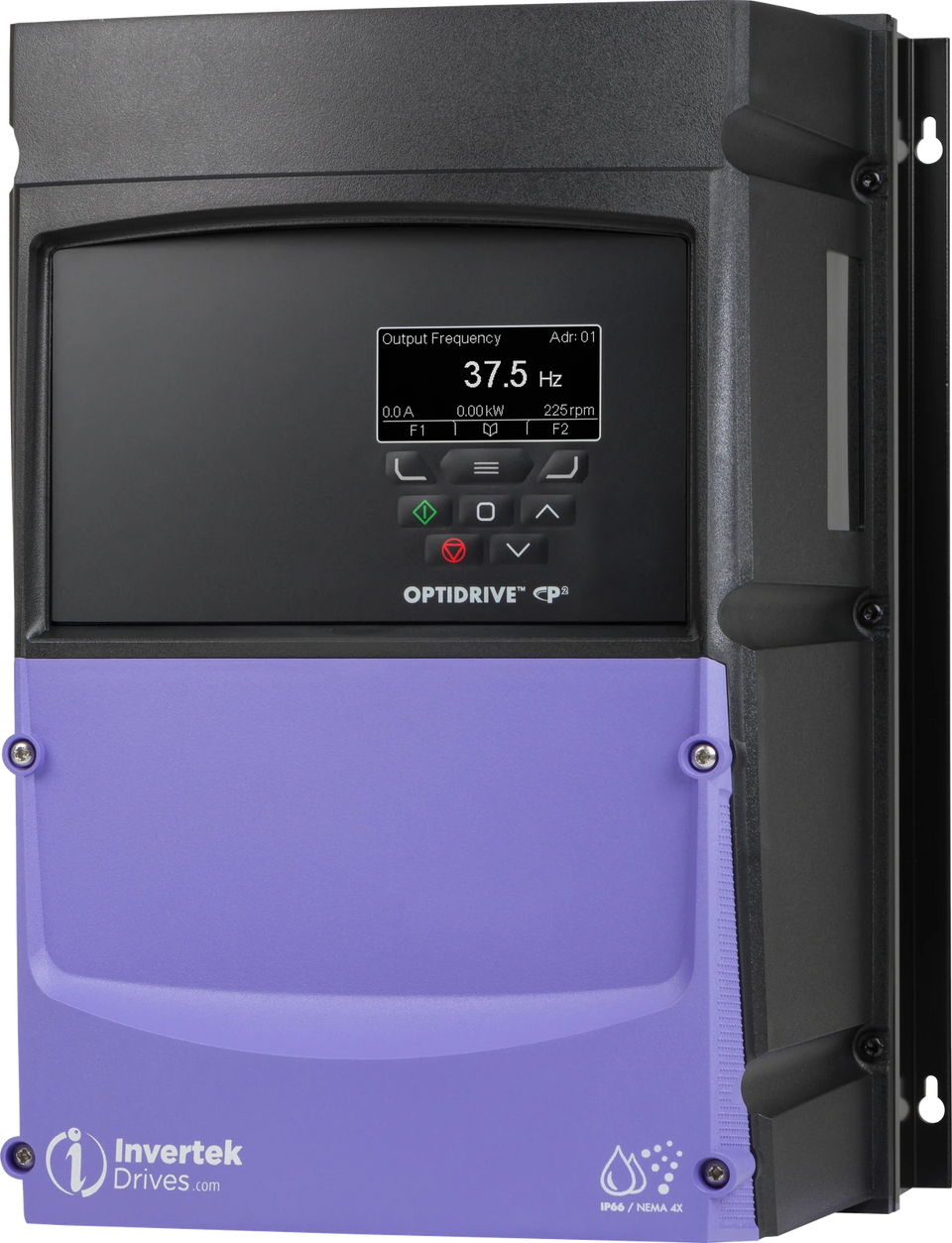

Invertek Optidrive P2 ODP-2-42100-3HF4A-MN – 10Hp 200~240V 3Ph IP66/NEMA4X Indoor/Outdoor
Invertek Optidrive P2 – Model ODP-2-42100-3HF4A-MN Power: 10Hp / 7.5kW Output Current: 30A Input Voltage: 200~240V 3Ph ...
Power
10.0 HP / 7.5 kW
Check datasheet
Voltage
Three Phase 200-240V
Input class
Enclosure
IP66/NEMA4X Indoor/Outdoor
Model dependent
Authorized distributor. Genuine Invertek Frequecy Drive.
Free quick tech support. Sizing and parameter help during business hours.
Warranty. Manufacturer warranty applies. Coverage and duration vary by manufacturer and model. See our Warranty Policy and applicable manufacturer terms.
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
10.0
Output power (kW)
7.5
Output current (A)
30.0
Electrical input
Input voltage
Three Phase 200-240V
Output voltage
Three Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP66/NEMA4X Indoor/Outdoor
Frame size
4
Dimensions (in)
14.2 x 9.5 x 10.7
Weight (lb)
20.9
Control & safety
Safe Torque Off
✓
Communications
Modbus RTU/CANopen
Keypad / display
TFT Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
