Invertek · ODP 2

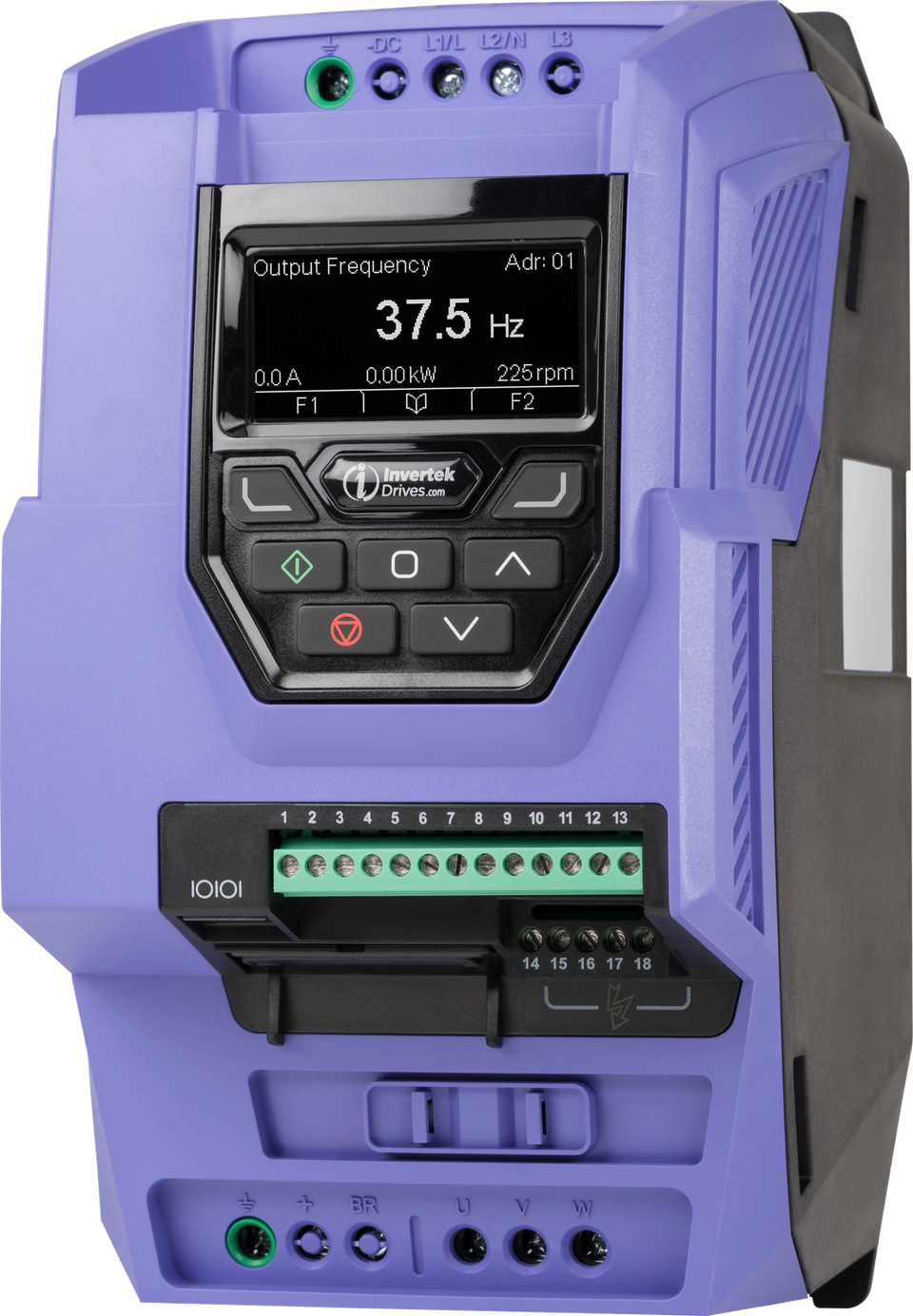

Invertek Optidrive P2 ODP-2-36150-3H042-MN – 15Hp 500~600V 3Ph IP20
Invertek Optidrive P2 – Model ODP-2-36150-3H042-MN Power: 15Hp / 11kW Output Current: 17A Input Voltage: 500~600V 3Ph ...
Power
15.0 HP / 11.0 kW
Check datasheet
Voltage
Three Phase 500-600V
Input class
Enclosure
IP20
Model dependent
Authorized distributor. Genuine Invertek product, full manufacturer warranty.
Free quick tech support. Sizing and parameter help during business hours.
Limited warranty. Manufacturing defects, components, and firmware coverage as applicable.
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
15.0
Output power (kW)
11.0
Output current (A)
17.0
Electrical input
Input voltage
Three Phase 500-600V
Output voltage
Three Phase 500-600V
Internal EMC filter
-
Enclosure & dimensions
Enclosure rating
IP20
Frame size
3
Dimensions (in)
10.3 x 5.2 x 8.1
Weight (lb)
7.7175
Control & safety
Safe Torque Off
✓
Communications
Modbus RTU/CANopen
Keypad / display
TFT Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
