Invertek · ODE 3

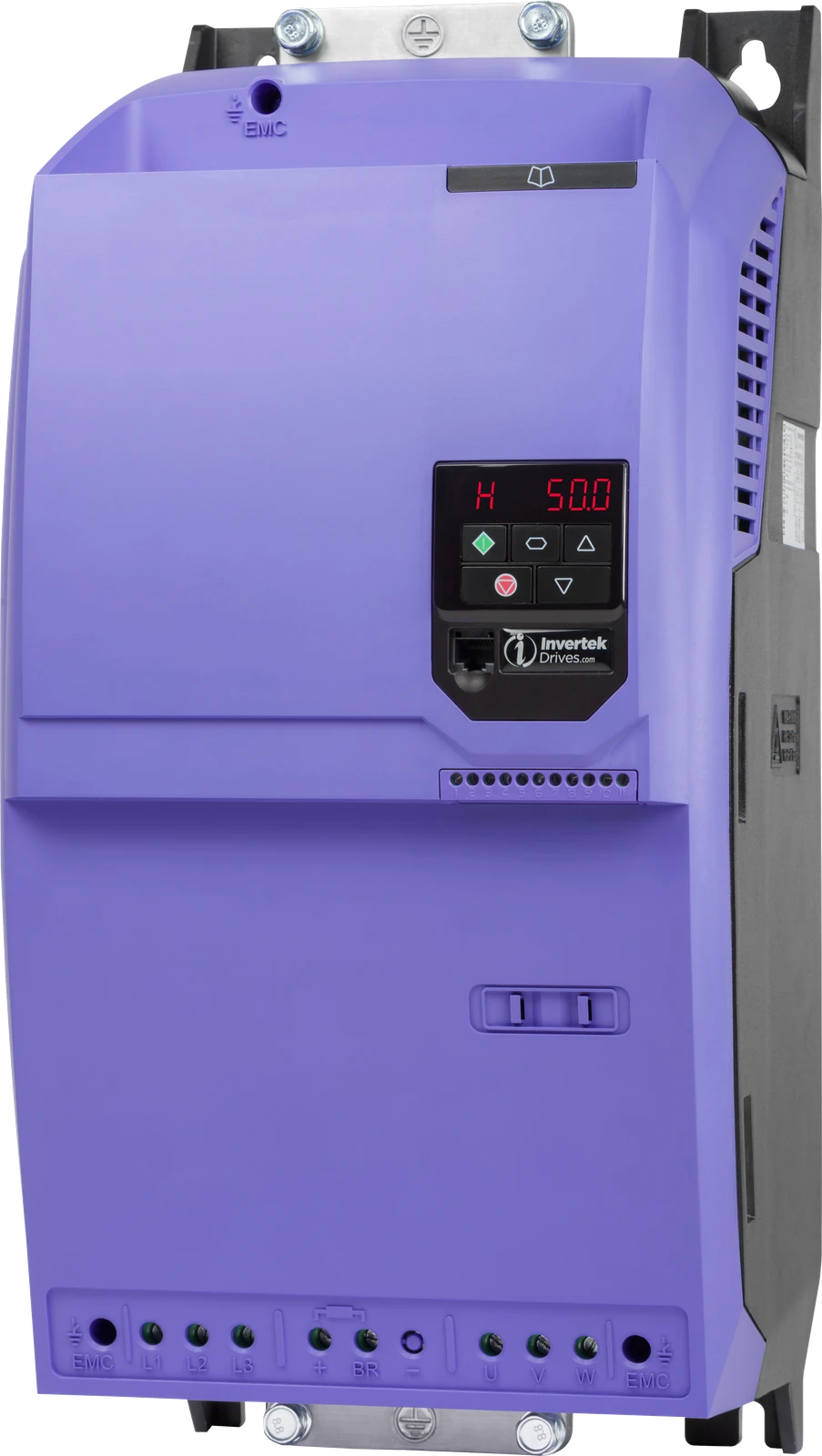

Invertek Optidrive E3 ODE-3-520610-3F42 – 20Hp 200~240V 3Ph IP20
Invertek Optidrive E3 – Model ODE-3-520610-3F42 Power: 20Hp / 15kW Output Current: 61A Input Voltage: 200~240V 3Ph Out...
Power
20.0 HP / 15.0 kW
Check datasheet
Voltage
Three Phase 200-240V
Input class
Enclosure
IP20
Model dependent
Authorized distributor. Genuine Invertek Frequecy Drive.
Free quick tech support. Sizing and parameter help during business hours.
Warranty. Manufacturer warranty applies. Coverage and duration vary by manufacturer and model. See our Warranty Policy and applicable manufacturer terms.
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
20.0
Output power (kW)
15.0
Output current (A)
61.0
Electrical input
Input voltage
Three Phase 200-240V
Output voltage
Three Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP20
Frame size
5
Dimensions (in)
19.3 x 8.7 x 8.9
Weight (lb)
39.9
Control & safety
Safe Torque Off
-
Communications
Modbus RTU/CANopen
Keypad / display
LED Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, CE, RCM
