Invertek · ODE 3

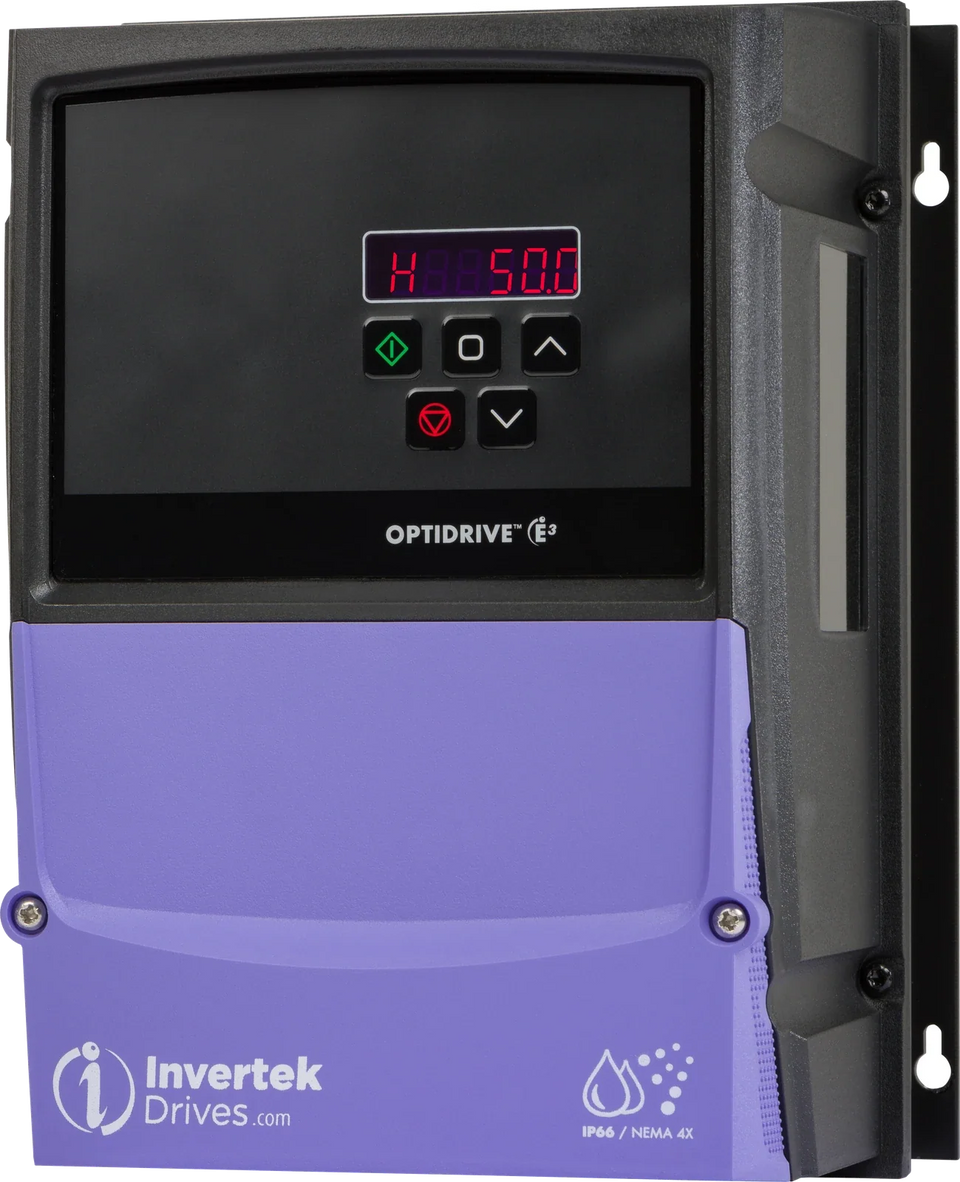

Invertek Optidrive E3 ODE-3-210105-1F4X-01 – 0.75Hp 110~115V 1Ph IP66/NEMA4X Indoor
Invertek Optidrive E3 – Model ODE-3-210105-1F4X-01 Power: 0.75Hp / 0.55kW Output Current: 10.5A Input Voltage: 110~115V...
Power
0.75 HP / 0.55 kW
Check datasheet
Voltage
Single Phase 110-115V
Input class
Enclosure
IP66/NEMA4X Indoor
Model dependent
Authorized distributor. Genuine Invertek Frequecy Drive.
Free quick tech support. Sizing and parameter help during business hours.
Warranty. Manufacturer warranty applies. Coverage and duration vary by manufacturer and model. See our Warranty Policy and applicable manufacturer terms.
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
0.75
Output power (kW)
0.55
Output current (A)
10.5
Electrical input
Input voltage
Single Phase 110-115V
Output voltage
Single Phase 110-115V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP66/NEMA4X Indoor
Frame size
2
Dimensions (in)
10.1 x 7.4 x 7.2
Weight (lb)
7.7
Control & safety
Safe Torque Off
-
Communications
Modbus RTU/CANopen
Keypad / display
LED Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, CE, RCM
