Invertek · ODV 3

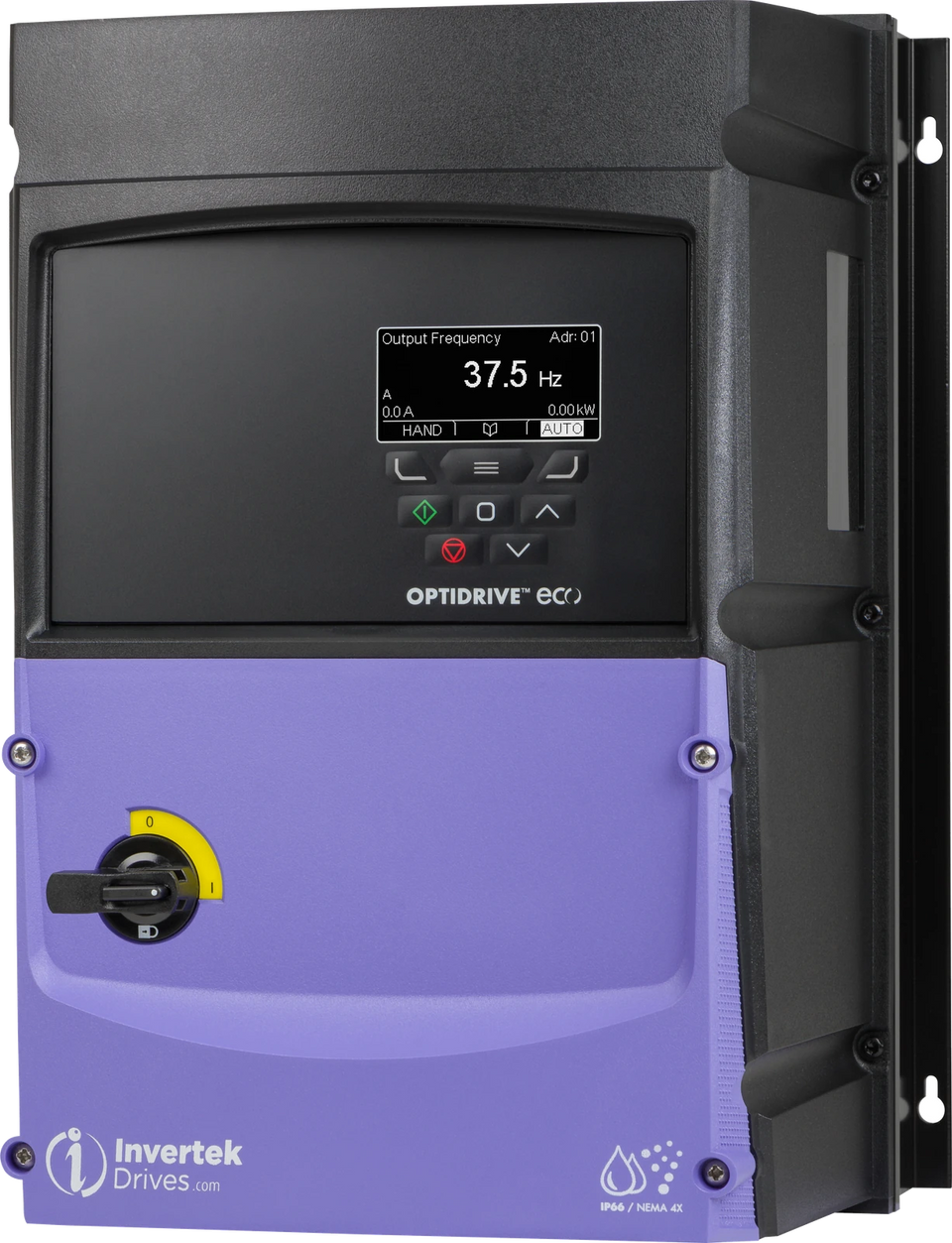

Invertek Optidrive Eco ODV-3-460340-301E-MN – 30Hp 500~600V 3Ph IP66/NEMA4X Indoor/Outdoor
Invertek Optidrive Eco – Model ODV-3-460340-301E-MN Power: 30Hp / 22kW Output Current: 34A Input Voltage: 500~600V 3Ph ...
Power
30.0 HP / 22.0 kW
Check datasheet
Voltage
Three Phase 500-600V
Input class
Enclosure
IP66/NEMA4X Indoor/Outdoor
Model dependent
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
30.0
Output power (kW)
22.0
Output current (A)
34.0
Electrical input
Input voltage
Three Phase 500-600V
Output voltage
Three Phase 500-600V
Internal EMC filter
-
Enclosure & dimensions
Enclosure rating
IP66/NEMA4X Indoor/Outdoor
Frame size
4
Dimensions (in)
14.2 x 9.5 x 10.7
Weight (lb)
20.9
Control & safety
Safe Torque Off
✓
Communications
ModbusRTU/BACnetMS/TP
Keypad / display
TFT Keypad
Built-in protection
-
Certifications & approvals
Approvals
UL, cUL, EAC, RCM
