INVERTEK
INVERTEK
Invertek · ODE 3

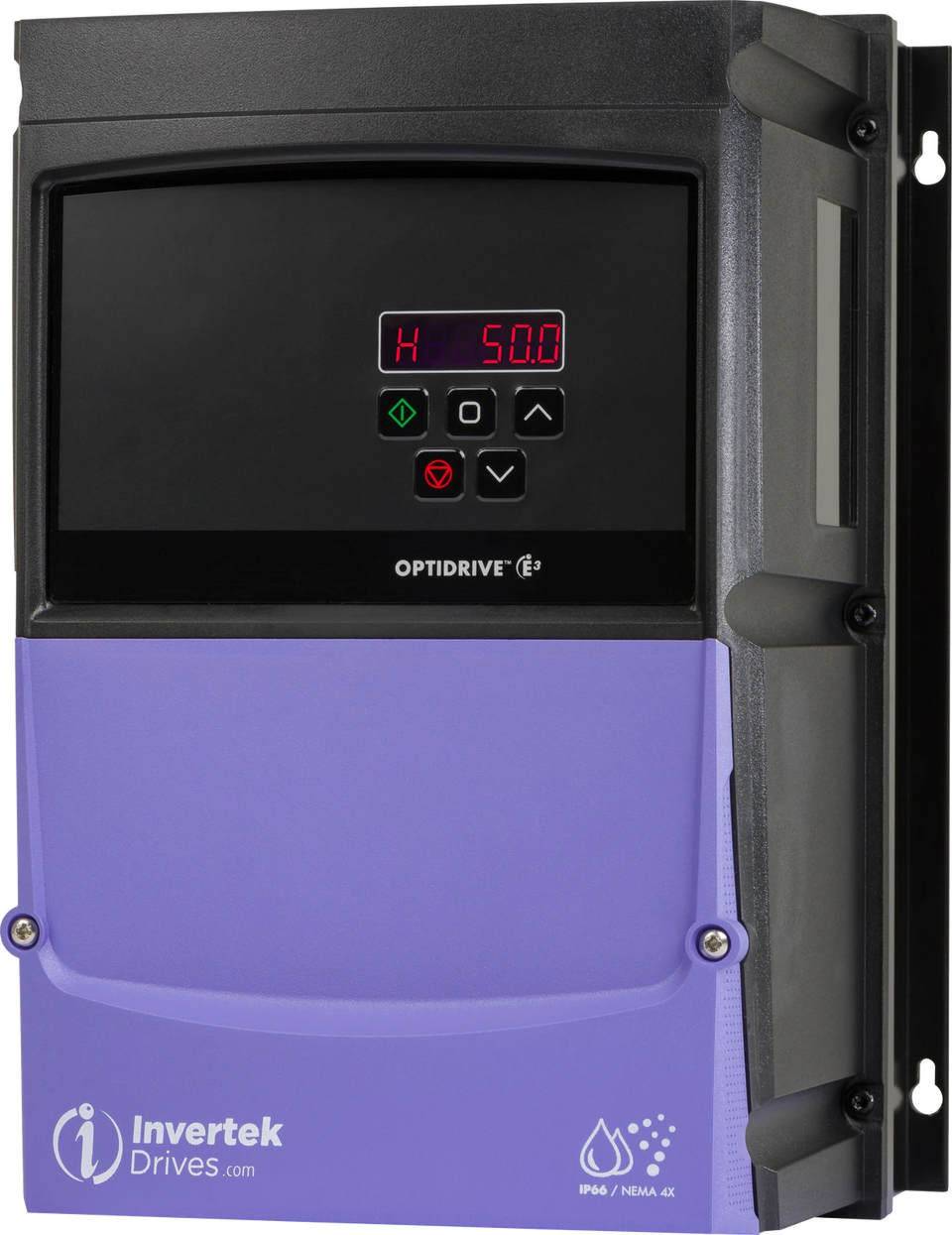

Invertek Optidrive E3 ODE-3-320153-1F4A-EIP – 5Hp 200~240V 1Ph IP66/NEMA4X Indoor/Outdoor
Invertek Optidrive E3 – Model ODE-3-320153-1F4A-EIP Power: 5Hp / 4kW Output Current: 15.3A Input Voltage: 200~240V 1Ph ...
Power
5.0 HP / 4.0 kW
Check datasheet
Voltage
Single Phase 200-240V
Input class
Enclosure
IP66/NEMA4X Indoor/Outdoor
Model dependent
ALL SPECIFICATIONS
Specifications, grouped by category
Power & output
Output power (Hp)
5.0
Output power (kW)
4.0
Output current (A)
15.3
Electrical input
Input voltage
Single Phase 200-240V
Output voltage
Three Phase 200-240V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP66/NEMA4X Indoor/Outdoor
Frame size
3
Dimensions (in)
12.2 x 8.3 x 9.3
Weight (lb)
14.6
Control & safety
Safe Torque Off
-
Communications
Ethernet IP
Keypad / display
LED Keypad
Built-in protection
Brake Transistor
Certifications & approvals
Approvals
UL, CE, RCM
