LS Electric · SP100

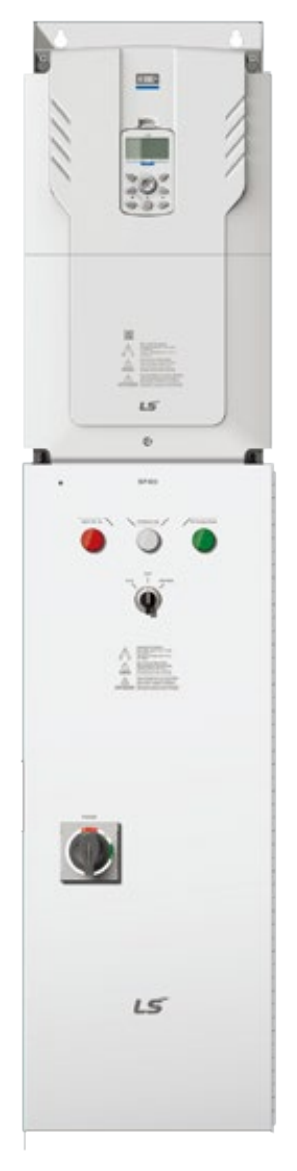

LS Electric LSLV0185SP100-4CEFD Bypass Drive 25.0hp Three Phase 380-480V IP20 with internal EMC filter
LS Electric SP100 Series Motor Power: 25.0 HP ( kW) Output Current: 38.0 A Input Voltage: Three Phase 380-480V Ou...
Power
25.0 HP / 18.64 kW
Check datasheet
Voltage
Three Phase 380-480V
Input class
Enclosure
IP20
Model dependent
Datasheet ↓
ALL SPECIFICATIONS
Specifications, grouped by category
Download as PDF ↓
Power & output
Output power (Hp)
25.0
Output power (kW)
18.64
Output current (A)
38.0
Electrical input
Input voltage
Three Phase 380-480V
Output voltage
Three Phase 380-480V
Internal EMC filter
✓
Enclosure & dimensions
Enclosure rating
IP20
Frame size
B
Dimensions (in)
46.41 x 8.26 x 10.65
Weight (lb)
81.57
Control & safety
Safe Torque Off
-
Communications
Modbus RTU, LS Bus, BACNet MS/TP, Metasys N13
Keypad / display
LCD
Built-in protection
Built-In DC Choke
Certifications & approvals
Approvals
UL, cUL, CE, KC
